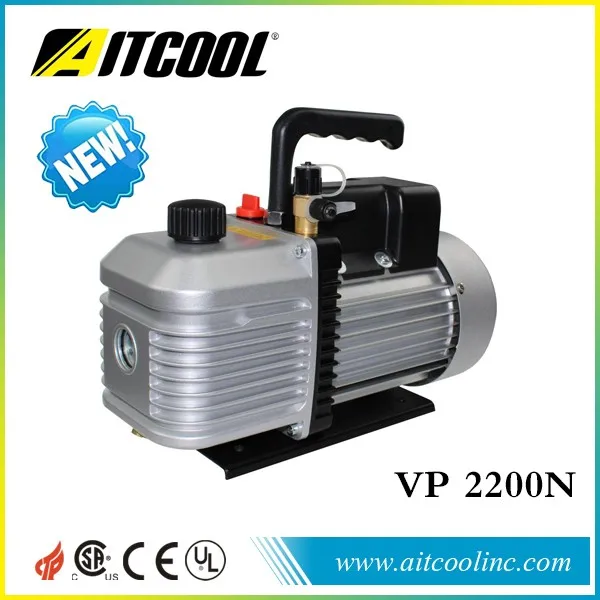

Aitcool micro double stage vacuum pump VP2200N for HVAC R
- Products Details
Quick Details
-
Brand Name: Aitcool
Model Number: VP2200N
Place of Origin: Zhejiang, China (Mainland)
Packaging & Delivery
- Packaging Details: carton/pallet
- Delivery Detail: according to the quantity
Specifications
micro double stage vacuum pump VP2200N for HVAC/R from manufacturer
Technical data:
Models | VP2200N | |
Flow Rate | 50Hz | 10CFM |
60Hz | 12CFM | |
Ultimate Vacuum | Partial Pressure | 2x10-1Pa |
Total pressure | 15Microns | |
Stage | 2 | |
Power | 1HP | |
Inlet Port | 1/4" &3/8"SAE | |
Oil Capacity | 600ml | |
Dimensions | 390 x145x252mm | |
Weight | 16kg |
Features:
1. Designed specially for HVAC/R service
2. Ultimate deep vacuum: single stage is 5PA, while dual voltage is 0.3 Pa
3. Compact design with aluminum hosing and easy to carry.
4. Thermal protector in the motor to guarantee the pump to run steadily.
5. Both 1/4' and 3/8' SAE flare inlet connections allow for flexibility of connections.
6. Vacuum pump oil included.
7. Suitable for all the main voltage design in the market.
8. Individual design for special customers.
Pump Components:
